Models, LCD DIsplay, and GUI
-

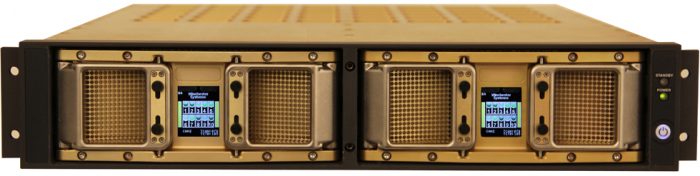

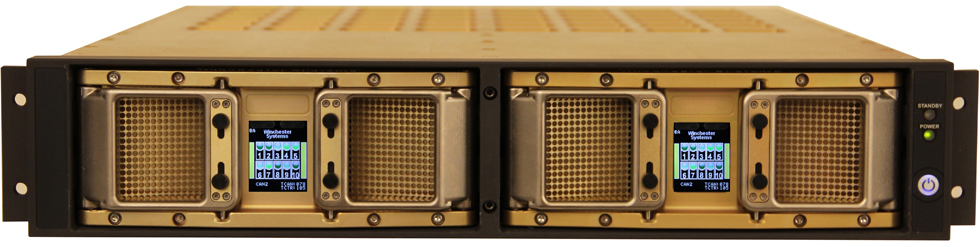

RR2P System
For rapid field re-deployment of critical surveillance vehicles including planes, ships and Humvees, the RR2P dual canister systems enables recorded data to be removed and replaced immediately with fresh canisters in under two minutes.
-

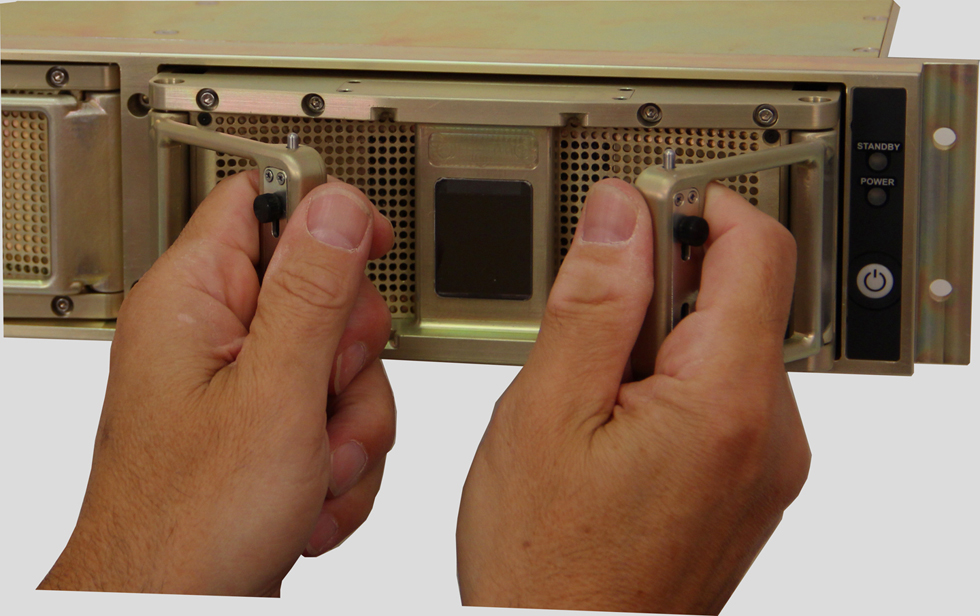

Pluggable canisters are easy to insert and remove.
-

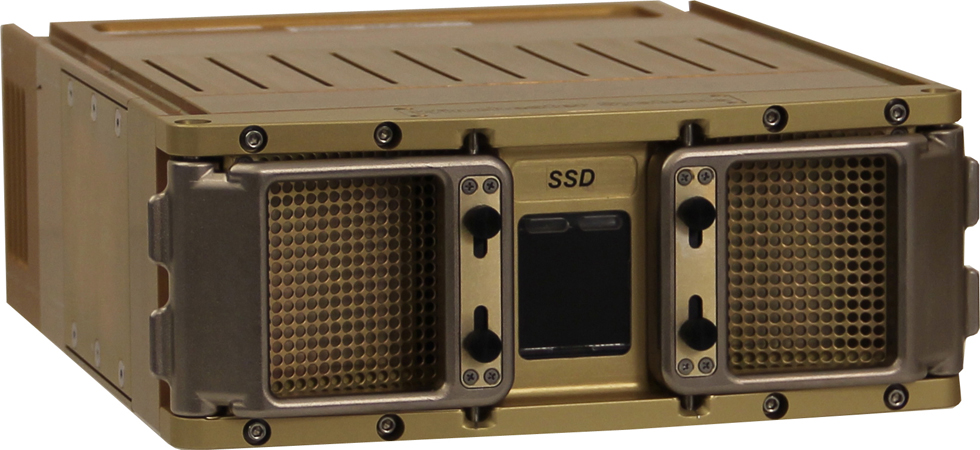

Sturdy lightweight, milled-aluminum canister records up to 20 TB and is designed for quick data transfer to ground stations from mobile vehicles. Canister LCD provides status information.
-

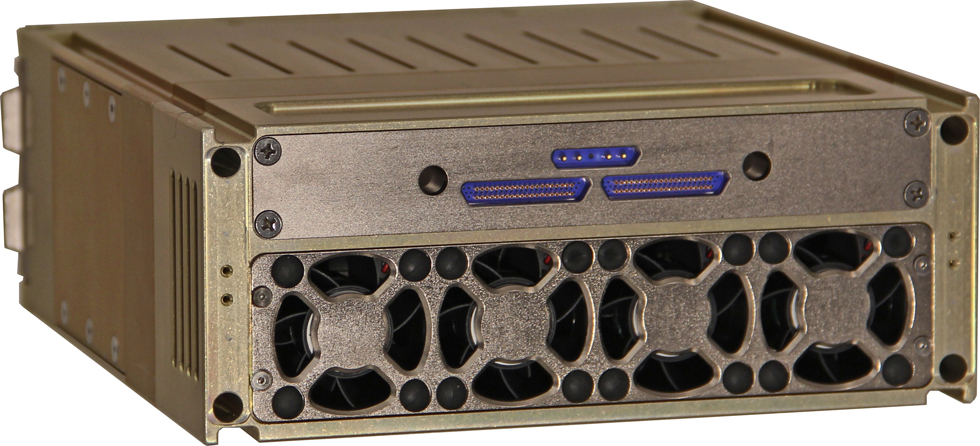

Rear view of canister shows high speed SAS 6 Gb connectors and four variable speed, high performance cooling fans.
-

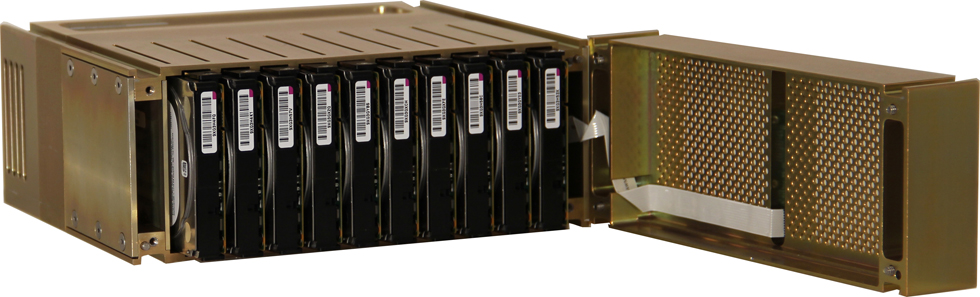

Interior view shows the 10 disk drives in the canister.
-

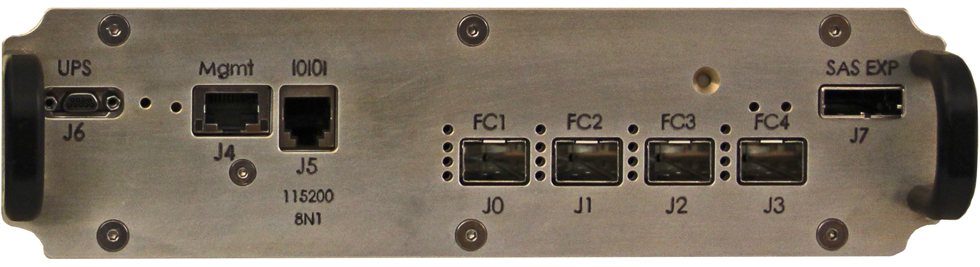

RR2P Rear I/O panel shows four 8 Gb fibre channel ports, SAS expander port and various management ports.
-

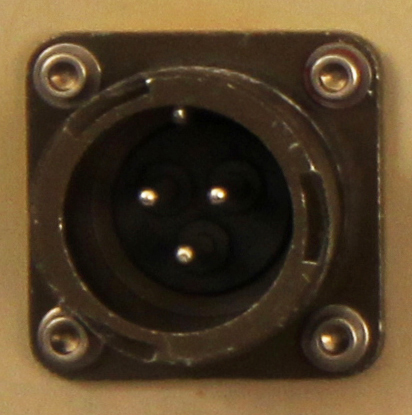

Military circular, capped connector.
-

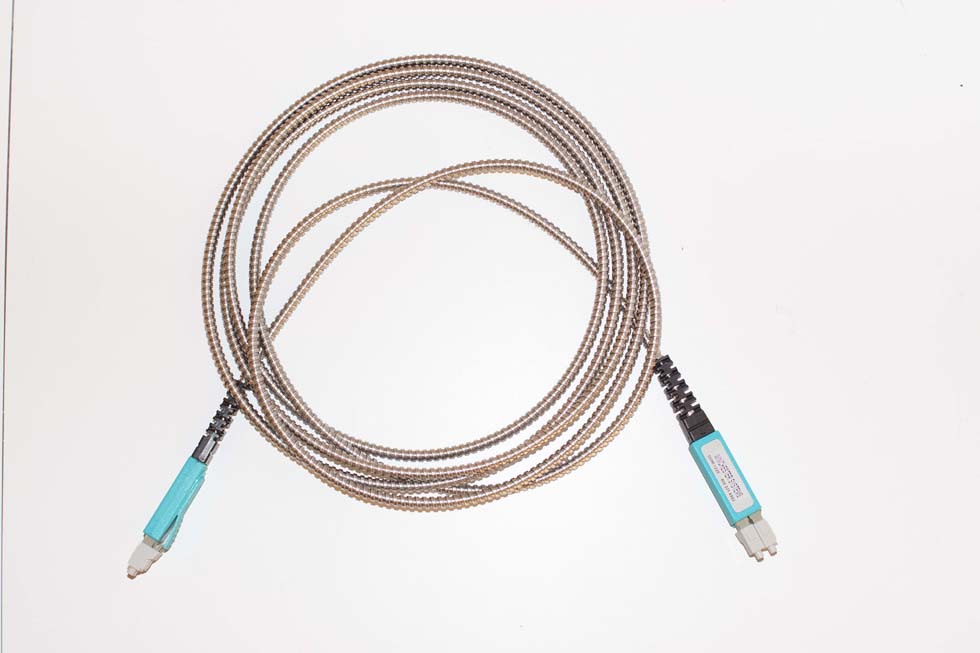

Rugged, ultra-flexible Fibre Channel cables with crush-resistant connectors.
Features
Pluggable Canister RAID
- Two canisters per 2U shelf
- Canister holds ten 2.5” SFF disks or SSDs
- Rated for 10,000 insertion cycles
- Positive canister locking mechanism
- Canister restraints for crash protection
- Four 8 Gb Fire Channel ports
- 0° to 40° C operating temperature
- 2,200 MB read/2,000 MB write throughput
Connectivity, Capacity & Scalability
- Supports 20 SAS or SSD 2.5” SFF disks
- 17” wide x 22″ deep for ease of mounting
- Rackmount rail kits available
- AC or DC power supplies
- 2 GB controller cache
Reliabiliy & Serviceability
- RAID 0, 1, 5, 6, 10, 50, 60 data protection
Centralized & Remote Management
- Manage via IP, SMTP, SNMP, RS-232, CLI
Designed to Meet Military Standards
- MIL-STD-810F – Environmental
- MIL-STD-901D – Shock and Vibration
- MIL-STD-461E – EMI/RFI
- MIL-STD-1686A – ESD
Designed as transportable data storage for mobile field use aboard planes, ships and ground transport, the RR2P is a lightweight aluminum 2U RAID disk array, weighing 48 pounds fully loaded, featuring two secure, yet easily removable disk canisters. Each canister holds 10 compact 2.5” Small Form Factor (SFF) disk drives with capacity up to 2 TB each and total system capacity to 40 TB. For speed, capacity and economy a variety of SAS and Solid State Disks (SSDs) are available in the 2.5” SFF size to meet varying needs. The RAID controller delivers up to 2,000 MB per second write throughput for rapid data recording and up to 2,200 MB per second for data reading and transfer from SAS disks.
In a typical surveillance application, the post-mission canisters with the critical images are easily removed and plugged into a ground station. Fresh canisters are immediately loaded into the mobile unit for rapid redeployment. All 10 disks in a canister are carried as a single unit by a handle for safe transport. Each canister locks into place with a positive locking lever. Reliable canister connectors are military grade for field usage. For personnel safety during deployment, the canisters are held by secure restraints for crash protection impact to 200G. Canister connecters are military grade and rated for 10,000 insertion cycles.
The RR2P has four 8 Gb Fibre Channel that can be user configured as dual ports per canister and offers options including AC or DC power supplies variety of disk and SSD storage alternatives. It is conveniently only 17” wide to mount with steel rails or special 1U mounting tray instead of ball bearing rollers to avoid potential Foreign Object Damage (FOD).
The RR2P is designed to facilitate rapid data transfer from mobile vehicles to ground stations. Importantly, the RR2P will operate at 40° C and at 10,000 foot pressurized attitudes. Variable speed fans provide cooling on demand while reducing noise and vibration at moderate ambient temperatures. A front-mounted LCD on each canister provides power, activity and status information.
Specs
| 2U RAID Disk Array | |
|---|---|
| RAID controller | 1 high speed RAID controller, SBB 2.0 |
| Canisters | 2, each with 10 SFF 2.5″ disks or SSDs |
| RAID levels supported | 0, 1, 5, 6, 10, 50, 60 |
| Fibre Channel Host interface | 4 x 8 Gb also supports 4 Gb & 2 Gb |
| Drive interface | 6 Gb SAS |
| Number of drives/Total capacity | 20 drives/40 TB maximum capacity |
| On-line capacity expansion | Automaticaly adds drives to existing array |
| Cache memory capacity | 2 GB standard, 4 GB and 8 GB optional |
| Hot spare drives | User configurable with 1 or more per canister available |
| Non-volatile cache | Optional battery backup option with 72 hour protection |
| Maximum LUNs | 1024 LUNs |
| LUN masking | Configurable for each host LUN on FC SAN |
| Port Mapping | Map ports to servers for direct attach environments |
| Multipathing (MPIO) | MPIO supported for Windows and Linux |
| Canisters | |
|---|---|
| Capacity | 10 SAS or SSD disks |
| Weight | 10 lbs with HDDS; 8 lbs with SSDs |
| Display | Center mounted LCD with status information |
| Keying | Keyed left/right cansiters optional |
| Connectors | Military grade rated for over 10,000 insertion cycles |
| Latch | Individual canister latching for secure insertion |
| Restraints | Crash resistant canister restraints for personal safety |
| Cooling fans | 4 variable speed cooling fans per canister |
| Disk Drives | |
|---|---|
| 2.5” SAS disk drives, 15k rpm | 146, 300 GB |
| 2.5” SAS disk drives, 10k rpm | 600, 900 GB, 1.2 TB |
| 2.5” SAS disk drives, 7.2k rpm | 1 TB |
| SSD MLC disk drives | 400, 800 GB, 2.0 TB |
| Controls and Indicators | |
|---|---|
| Firmware embedded manager | Access via RS-232 port |
| Firmware embedded web browser | Use standard web browser on 10/100 Gb LAN port |
| Firmware embedded CLI | Command Line Interface for text management |
| Firmware embedded SMTP | Monitor system events via email |
| Firmware embedded SNMP | Monitor system events via SNMP without agent |
| Indicators | Front panel power and status indicators |
| Compatibility | |
|---|---|
| Operating systems | Supports industry standard operating systems |
| Platforms supported | Supports Fibre Channel and embedded FPGA hosts |
| Remote monitoring ports | RS-232 and 10/100 Ethernet |
| Storage Management | |
|---|---|
| Event notification | Automatic event and problem alert notification |
| Manage out of band | Ethernet |
| Centralized management | Manage from any LAN workstation with web browser and no additional software |
| General | |
|---|---|
| Power mode | Available in with AC or DC power |
| AC power; DC power | 100-240 VAC, 47-63 Hz, 750 W; 10-36 VDC, 600 W |
| Power connector | Military circular, capped connector |
| Power consumption | 550 Watts peak, 350 Watts operating |
| RAID unit dimensions | 3.5″ (2U) high x 17″ wide x 22″ deep |
| RAID unit weight | 48 lbs. with HDDs; 44 lbs with SSDs |
| Temperature | 0° to 40° C operating; -40° to 60° C non-operating |
| Cooling system | 2 high volume cooling fans on rear panel |
| Compliance | UL approved; FCC & CE pending |
| Warranty & Service | |
|---|---|
| Standard warranty | One year warranty and toll-free hotline |
| Service Contracts | Extend standard warranty for subsequent years, Upgrade to on-site service in continental US |
LCD Display
-

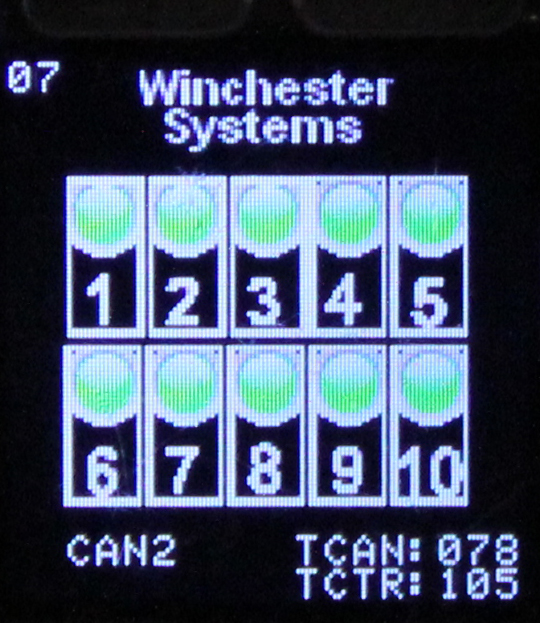

RR2P LCD Drive OK Indicators
Canister LCD displays drive status including internal temperatures.
-

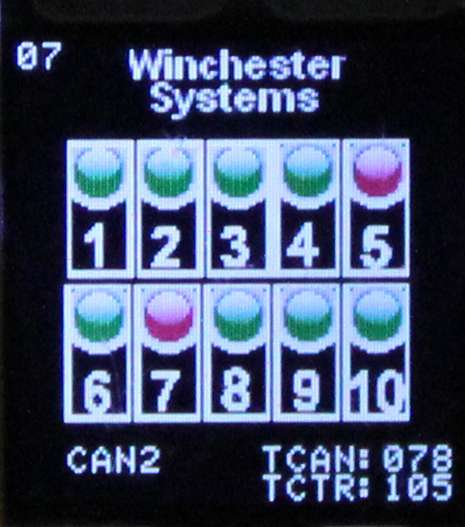

RR2P LCD Failed Drive Indicators
Canister LCD red indicators signify failed drives.
-

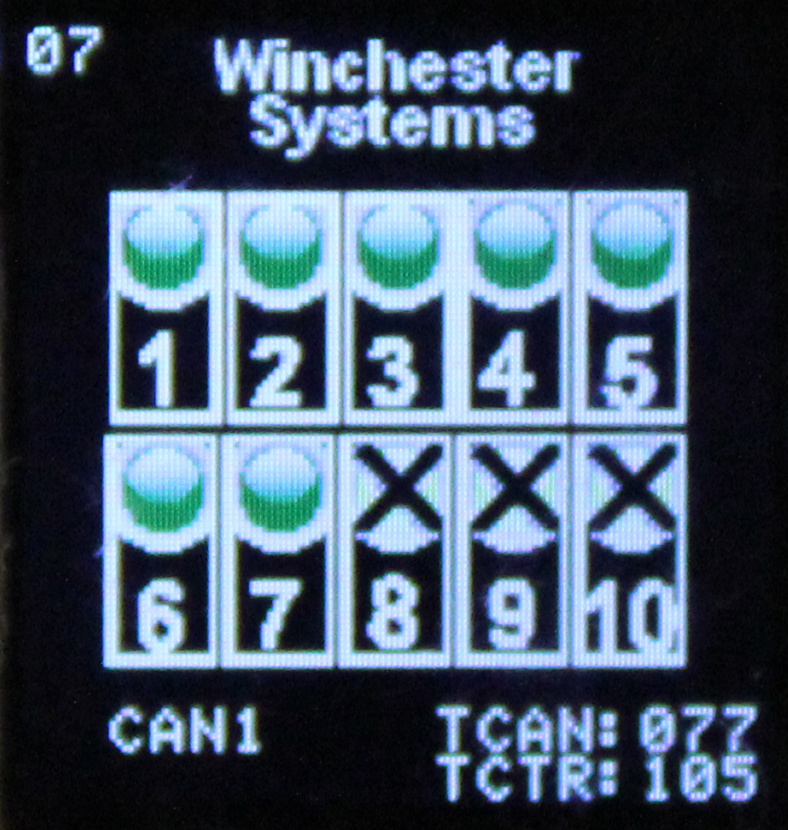

RR2P LCD Drive Absent Indicators
The “X” indicates drives not present.
-

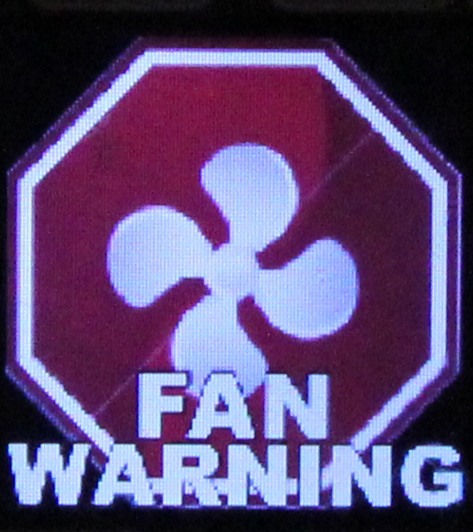

RR2P LCD Fan Warning
The “fan warning” indicates fan failure and a subsequent screen identifies the problem fan.
-
RR2P LCD Cable Error
Cable errors causes all drives to be tagged as “missing” and produces “cable error” message below the image.
-
RR2P LCD Temperature Warning
Temperature over the limit produces a “temperature warning” message.
GUI
-

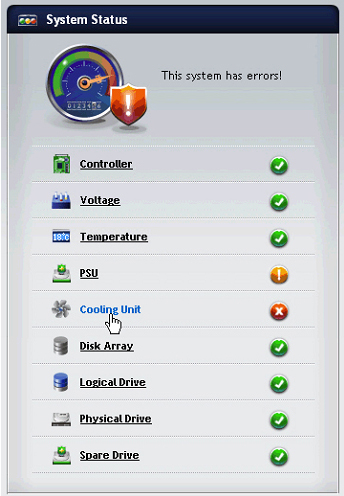

RR2P System Status
RR2P monitors status with easy to recognize fault indicators.
-
RR2P Logical Drives
RR2P logical drives displays online, offline and rebuild status.
